TRUCK WHEELS
With their impeccable legacy in manufacturing for premium automotive OEM 's, motorcycles, aviation and railway applications - it's no surprise that OTTO FUCHS took their expertise in forged aluminium alloy to enter the truck wheel market. Addressing the growing demand for trucks, buses, road tankers and trailers, OTTO FUCHS have redefined standards for safety, fuel, load efficiency and innovative design.
For more detailed information, please visit

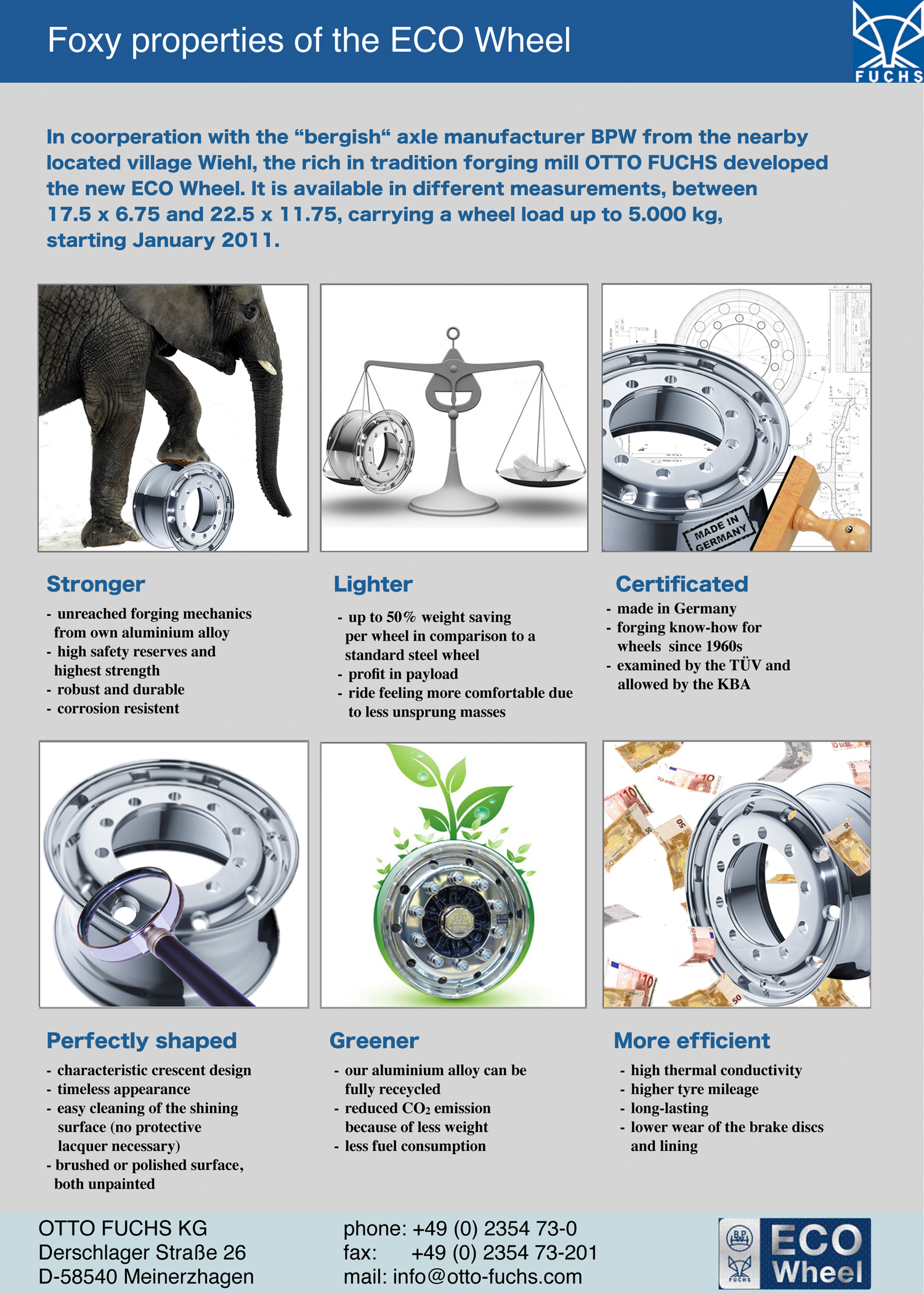

Truck Forged Wheels
AREA OF APPLICATION:
Use in the field of heavy commercial vehicles for trucks and trailers.
TECHNICAL INFORMATION:
forged aluminium wheels
excellent mechanical characteristics due to OF-alloy AS 10 (AlSi1MgMn; 6082)
compare to steel wheels weight savings of up to 20kg per wheel possible
therefore gain in payload and efficiency
surface finishes: unpainted, mirror finished or for an additional charge full-polished
bolt hole-diameter available in 26 and 32 mm (17.5x6.75 only with 26 mm)
wheel size |
weight |
max. wheel load |
22.5 x 11.75, ET120 |
26.2 kg |
5,000 kg |
22.5 x 11.75, ET0 |
22.0 kg |
4,500 kg |
22.5 x 9.00, ET153 |
25.4 kg |
4,125 kg |
22.5 x 8.25, ET145 |
22.9 kg |
3,650 kg |
17.5 x 6.75, ET117 |
14.4 kg |
3,000 kg |
